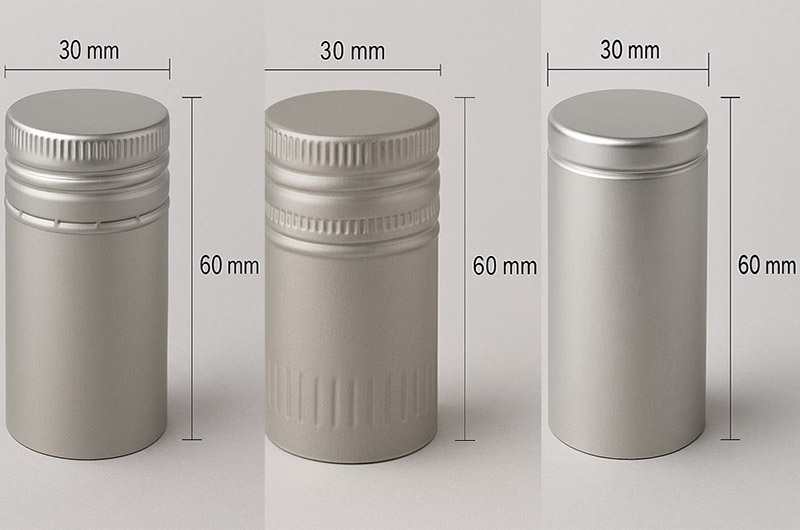

30x60mm Aluminum Cap
30×60mm aluminum cap typically refers to a cylindrical screw-type or special-shaped cap with a diameter of 30mm and a height of 60mm.
30x60mm Aluminum Cap Specifications
| Item | Specification Description |
| Standard Dimensions | Diameter: 30 mm |
| Height: 60 mm | |
| Wall Thickness | 0.23 mm ± 0.01 mm (Ensures sealing performance and mechanical strength) |
| Type | Aluminum screw cap (Suitable for wine, spirits, etc.) |
| Material | Aluminum alloy (Common types: 8011-H14, 3003-H16), featuring lightweight, durability, and corrosion resistance |
| Liner Types | Options: |
| PE (Polyethylene) | |
| EPE (Expanded Polyethylene) | |
| Saranex (Multi-layer composite film) | |
| Sarantin (High-grade composite sealing liner) | |
| Function | Leak-proof sealing, oxidation resistance, preserves the freshness of alcoholic beverages |
| Weight | Typically 4 g – 6 g (Varies depending on liner type and wall thickness) |
30x60mm Aluminum Cap Common Types
- Screw Cap: Aluminum screw cap specially designed for wine bottles, offering easy opening and reliable sealing.
- Extended Cap: Suitable for special container needs, with emphasis on high temperature resistance (120°C–300°C) and acid/alkali resistance.
| Feature | Screw Cap (Bottle) | End Cap (Profile) |
| Dimensions | Ø30 × 60 mm (height) | 30 × 60 mm (length × width) |
| Material | Aluminum alloy | ABS plastic or aluminum hybrid |
| Sealing | Lined, leak-proof, tamper-evident | Simple press-fit, no sealing |
| Decoration | Printed, embossed, anodized options | Usually uncolored, functional aesthetics |
| Typical Weight | ~4 g | ~4 g (plastic) |
| Application | Bottles of wine, spirits | Structural framing systems |
| Product Type | Image | Description |

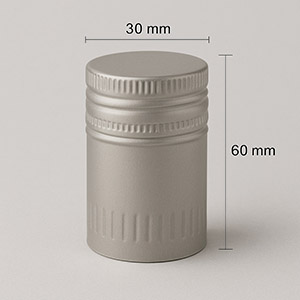

| 30x60mm Aluminum Screw Cap |
|
The 30x60mm Aluminum Screw Cap is a screw-type bottle cap made from high-quality aluminum, offering excellent sealing performance and corrosion resistance. It is commonly used for premium liquid packaging such as wine, spirits, and olive oil. With a standard 30x60mm size, it fits a variety of glass bottle necks and allows easy opening and resealing by twisting. It enhances user experience and supports personalized printing and surface treatment, meeting brand customization needs. |

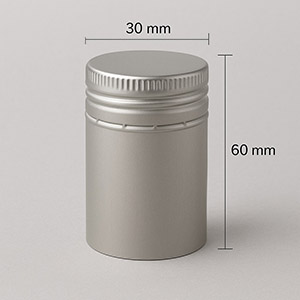

| 30x60mm ROPP Aluminum Cap |
|
The 30x60mm ROPP Aluminum Cap is an aluminum closure manufactured using Roll-On Pilfer-Proof (ROPP) technology. It is specifically designed for bottled products requiring tamper-evident functionality upon first opening, such as wine, spirits, and health supplements. Based on the standard 30x60mm size, the cap forms anti-tamper teeth through machine rolling to ensure sealing safety after production. It also offers excellent leak-proof performance and aesthetic appeal, making it widely used in the high-end packaging market. |
30x60mm Aluminum Cap Decoration
- Cap: Offset printing, embossing, UV printing, hot stamping, silk screen printing
- Bottle wall: Four-color offset printing, embossing, hot stamping, silk screen printing
- Surface treatment: Matte/gloss coating, metallic effects (e.g., gold, silver), textured grip
30x60mm Aluminum Cap Core Features & Processes
Material Properties:
- Made from high-purity aluminum, combining lightweight characteristics with corrosion resistance.
- The surface can undergo chromating to form a conversion film (thickness 0.5–4μm) that enhances coating adhesion, making it suitable as a coating base layer; or anodizing to increase hardness (200–300HV), significantly improving wear resistance.
Functional Advantages:
- Anti-counterfeiting design: Certain products achieve anti-counterfeit effects through special coatings or processes.
- Weather resistance: Suitable for high-temperature sterilization environments (e.g., food and pharmaceutical packaging), maintaining long-term stability.
- Preservation: Compared to corks, its superior oxygen barrier properties can extend the shelf life of wine/spirits.
- Compatibility: Fits standard glass bottles used for wine, whiskey, rum, and gin.
- Sustainability: Made from 100% recyclable aluminum.
- User-friendly: Easy to twist open and resealable.
30x60mm Aluminum Cap Features
ROPP (Roll-On Pilfer-Proof) Design: Threads are machine-rolled; tamper-evident band detaches automatically upon opening.
Liner Options:
- Oxygen Barrier: Saranex™, Sarantin™ (industry standards for wine preservation).
- Specialty Liners: PE/EPE foam, QR code liners for convenient traceability.
- Tamper-Evident: Integrated tear strip ensures product integrity.
30x60mm Aluminum Cap Applications
Use: Widely used for wine, vodka, tequila, and spirits – compatible with standard 750ml bottle necks.
| Application Field | Specific Uses and Descriptions |
| Alcohol Packaging | Widely used for sealing wine bottles (especially still wines) |
| Used for packaging spirits such as whiskey, vodka, rum, and other glass bottles | |
| Replaces traditional corks, providing better sealing, reducing oxidation risk, and extending flavor retention | |
| Industrial Packaging | Used for sealing industrially packaged spirit glass bottles |
| Applicable to pharmaceutical glass bottles to ensure hygienic sealing | |
| Suitable for non-carbonated beverage containers (e.g., energy drinks, herbal drinks) | |
| Offers customization services including: | |
| Printing brand logos on caps | |
| Surface spraying or anodizing treatment (special colors available) | |
| Customized liner structures to meet different liquid sealing requirements |
HC Aluminum Recommended Applications for 30x60mm Aluminum Cap
| Application | Image | Description |
| 30x60mm Aluminum ROPP Caps for Wine Glass Bottles |
|
30x60mm Aluminum ROPP Caps for Wine Glass Bottles are aluminum tamper-evident caps specifically designed for glass wine bottles. Utilizing Roll-On Pilfer-Proof technology, the caps form anti-tamper knurls through mechanical rolling, offering excellent sealing and anti-counterfeiting functions. Widely used for wine, champagne, and fruit wine, they ensure no leakage during transportation and storage, while providing tamper evidence for first-time opening. The aluminum surface is suitable for anodizing, electroplating, silk screen printing, hot transfer printing, and other decorative treatments to meet personalized branding needs. |
| 30x60mm Aluminum Vodka Tequila Caps |
|
30x60mm Aluminum Vodka Tequila Caps are specially designed for spirits bottles such as vodka and tequila. These aluminum caps integrate tamper-evident structure with high sealing performance. Made of high-strength aluminum and precisely processed to ensure a perfect fit with the bottle mouth, they effectively prevent alcohol evaporation and contamination. The exterior supports various decorative processes like color printing and hot stamping, enhancing premium packaging and brand recognition. They are widely used in the high-end spirits packaging market. |
| 30x60mm Hot Stamping Cover Wine Bottle Lids |
|
30x60mm Hot Stamping Cover Wine Bottle Lids - Alcohol Whiskey Vodka Aluminum Bottle Cap is a type of aluminum cap decorated using hot stamping technology, designed for wine, whiskey, vodka, and other alcoholic beverages. The cap's exterior features hot transfer or stamping to present metallic gloss, patterns, or text, enhancing visual appeal and brand prestige. With excellent sealing performance and tamper-evident functionality, it is a high-end cap solution combining practicality and aesthetics. |
| Aluminum Bottle Cap 30x60mm for Wine and Spirits Bottles |
|
Aluminum Bottle Cap 30x60mm for Wine and Spirits Bottles is a standard aluminum cap widely used for bottled wine and spirits. It features outstanding sealing, leak-proof, and tamper-evident properties. Compatible with standard 30x60mm glass bottle necks, the cap forms tamper-evident knurls through precision rolling, preventing unauthorized opening and preserving the quality of the liquor. The aluminum surface supports a variety of printing and coating treatments, enabling personalized branding, making it an ideal choice for mid-to-high-end packaging of wine, rum, brandy, and more. |
Which Type Is Right for You?
For bottles requiring sealing (wine, spirits), choose aluminum screw caps – designed to provide tight fit, secure sealing, decoration, and tamper-evidence.
