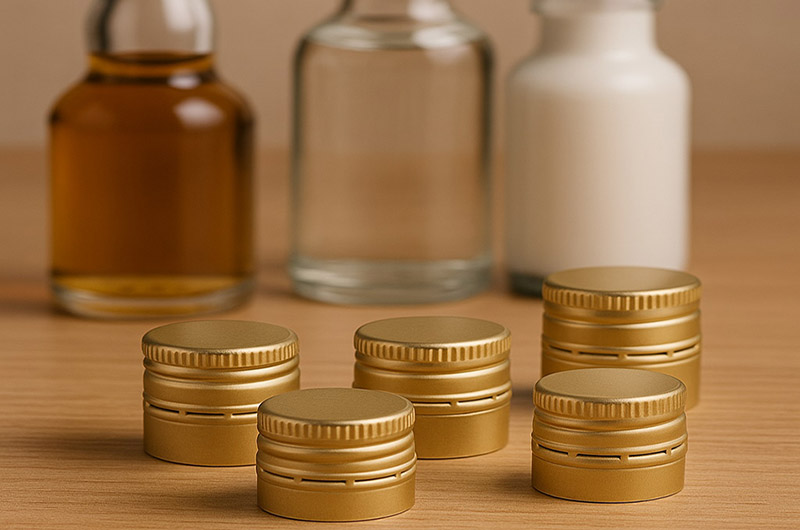

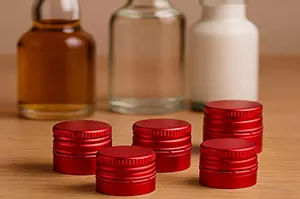

18mm ROPP Aluminum Caps

The 18mm ROPP aluminum cap is a specifically sized roll-on pilfer-proof aluminum bottle cap, widely used in the spirits, beverage, and pharmaceutical industries. These caps are highly customizable, offer excellent sealing performance, and are suitable for automated production lines—both practical and effective for enhancing brand image.

18mm: Refers to the bottle neck diameter the cap is designed to fit (commonly used for small-volume packaging such as oral liquid bottles, small medicine bottles, mini liquor bottles, etc.).
ROPP (Roll-On Pilfer Proof): This refers to a capping technology where a specialized capping machine rolls the aluminum cap onto the bottle thread to form a seal, while incorporating a tear-off line or tamper-evident ring to ensure the cap is visibly damaged upon first opening.

With its precise sealing, tamper-evident, anti-counterfeit, and high-temperature-resistant features, the 18mm ROPP aluminum cap is the preferred choice for packaging small-diameter, high-value liquid products—especially indispensable in premium beverage and pharmaceutical sectors.

Roll-On Pilfer Proof (ROPP) – These caps use mechanical force to roll threads onto the bottle neck, creating a tight tamper-evident seal. They include a tamper-evident band that breaks upon first opening, preventing reuse.

Specifically customized for 18mm bottle necks, these caps are commonly used for spirits ranging from 50ml sample bottles to standard-sized liquor bottles.

18mm ROPP Aluminum Caps Product Details

Attribute	Details
Material	Aluminum 8011 H14 / 3105 H16
Size	18 mm diameter, ~12 mm height
Liners	Foam, PE, EVA, Saranex
Customization	Colors, printing, embossing, knurling
MOQ	Typically ≥10k pcs
Use Cases	Spirits, beverages, oils, pharmaceuticals
Benefits	Tamper-evident, leak-proof, recyclable, machine-friendly

Core Specifications and Dimensions of 18mm ROPP Aluminum Caps

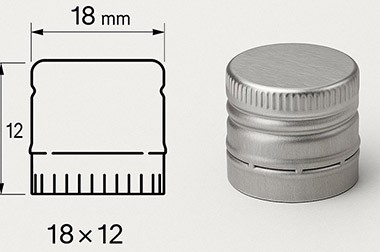

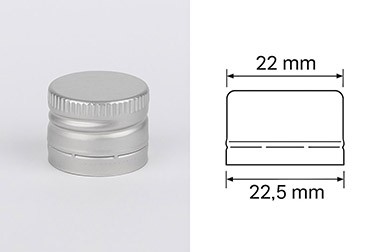

Bottle caps with an 18mm diameter typically have a height of around 12mm (e.g., 18×12mm). While 18mm is a standard size, ROPP caps are also available in 22mm, 24mm, 28mm, and other sizes.

Standard Size: 18mm diameter is a universal size, with height ranging from 12mm (for mini liquor bottles) to 18mm (standard beverage bottles)
Neck Compatibility: Designed to fit GPI-1605 (beverages), MCA2 (spirits), and other industry-standard bottle finishes

Material and Liners of 18mm ROPP Aluminum Caps

Cap Body: Usually made of premium aluminum alloys like 8011 H14 or 3105 H16, known for their high strength, lightweight, and corrosion resistance.
Liners: Equipped with various liners including foam-backed pulp, PE, EVA, or Saranex. These liners ensure sealing and leak prevention, even for volatile or oily substances.

Key Features of 18mm ROPP Aluminum Caps

Tamper-Evident: Removable seal ensures product integrity. Integrated tamper-evident band breaks upon opening, providing visual evidence of tampering.
Leak-Proof: Formed seal plus high-quality liner ensures product safety.
Compatibility: Suitable for glass bottles, PET bottles, or aluminum-neck bottles.

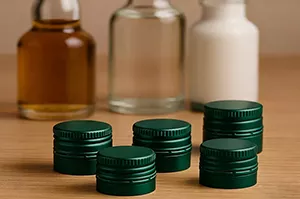

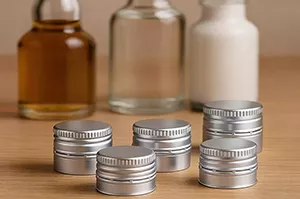

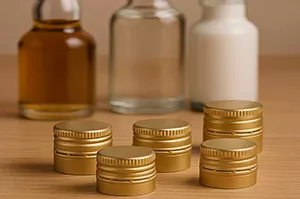

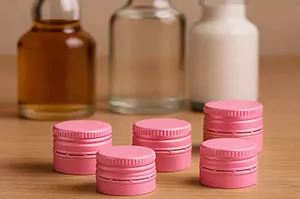

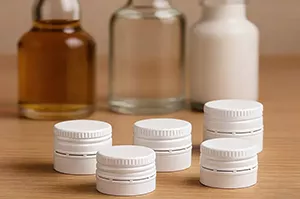

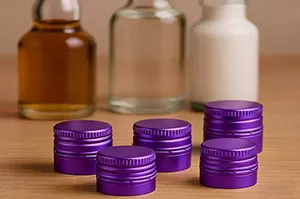

Customizable: Available in gold, silver, black, etc.; surface finishing options include hot stamping, offset printing, UV printing, embossing, or knurling.
Eco-Friendly: Aluminum material is fully recyclable.
Efficient Operation: Suitable for high-speed capping machines; economical for mass production.
Liner Systems: EPE, PE, or pulp-backed liners tailored for cold-fill applications (non-carbonated drinks), or breathable liners designed for carbonated beverages.
Thread Forming: Threads are rolled onto the cap using a dedicated ROPP capping machine, ensuring precise fit to the bottle neck.

Customization and Branding

Surface Finishing: Options include glossy/matte coatings, embossing, hot stamping, and full-color lithographic printing.
Logo Integration: Supports branding on top/sides; minimum order quantity for custom designs is 50, 000 pieces.

Core Functions and Applications of 18mm ROPP Aluminum Caps

Sealing: The ductility of aluminum allows the cap to roll tightly onto the bottle thread, forming a physical barrier against oxygen, moisture, and contaminants.
High-Temperature Resistance: Can withstand sterilization temperatures above 121°C, suitable for packaging scenarios requiring high-heat sterilization such as injectable pharmaceuticals, oral liquids, and health supplements.
Tamper-Proof and Anti-Counterfeit: Tear-off lines or tamper bands break on first opening, providing intuitive authenticity verification and preventing resealing. Ideal for high-end liquors (e.g., sample-size spirits) and high-value pharmaceuticals.
Product Integrity: Airtight seal prevents oxidation and contamination, extending shelf life. Even for carbonated drinks, leakage is prevented during transportation.
Consumer Safety and Convenience: Tamper-evident removable seals ensure security without complex opening mechanisms. Recyclable aluminum supports sustainability goals (100% recyclable).

Applications of 18mm ROPP Aluminum Caps

Spirits and Wines: Suitable for whiskey, vodka, brandy, gin, etc.
Beverages: Applicable for juices, edible oils, syrups, and teas.
Pharmaceuticals/Chemicals: Ideal for liquid medicines, supplements, and perfumes.

Beverages and Spirits

Cold-Fill Beverages: Suitable for non-vented caps on glass/PET bottled juice, water, and non-carbonated drinks.
Miniature Spirits: 18×12mm caps for 50ml bottles provide leak-proof sealing and a premium aesthetic design.
Wines and Spirits: Tamper-evident function helps maintain the integrity of high-value products during distribution.

Pharmaceuticals and Chemicals

Medical Liquids: Aluminum’s inertness prevents reactions with medications or disinfectants.
Tamper-Sensitive Products: Compliant with mandatory safety requirements for oral solutions and lab reagents.

Core Application Fields

‌Field‌	‌Application Examples‌	‌Advantages‌
‌Premium Beverages‌	Miniature liquor bottles, high-end condiments (such as olive oil), functional beverage caps	Strong tamper-evident and anti-counterfeit performance, enhances product image
‌Pharmaceutical Packaging‌	Injection vials, oral liquid bottles, vaccine bottle seals	High-temperature sterilization resistance, excellent chemical stability, ensures sterility and safety of medications
‌Cosmetics/Chemicals‌	Perfume bottles, high-purity reagent bottles	Excellent barrier properties, prevents evaporation and deterioration

Manufacturing and Packaging of 18mm ROPP Aluminum Caps

Stamping: Aluminum sheets are cut and formed.
Thread Rolling: Threads are rolled to match the bottle neck surface.
Liner Insertion: Liners are placed to ensure sealing.
Decoration: Caps are customized with printing or surface finishing.
Packaging: Supplied in cartons or on pallets; minimum order quantity typically ≥10k–50k pieces.

Reasons to Choose 18mm ROPP Aluminum Caps

‌Cost-Effective‌: Compared to plastic caps, aluminum caps are more affordable and 100% recyclable
‌Process Compatibility‌: Highly compatible with automated production lines; high-speed capping efficiency (hundreds of bottles per minute)
‌Regulatory Compliance‌: Meets strict sealing and sterility standards required in pharmaceutical and food industries

Limitation‌: The surface coating of aluminum caps may peel off under prolonged friction or corrosive conditions ("paint flaking"); surface finishing needs optimization
